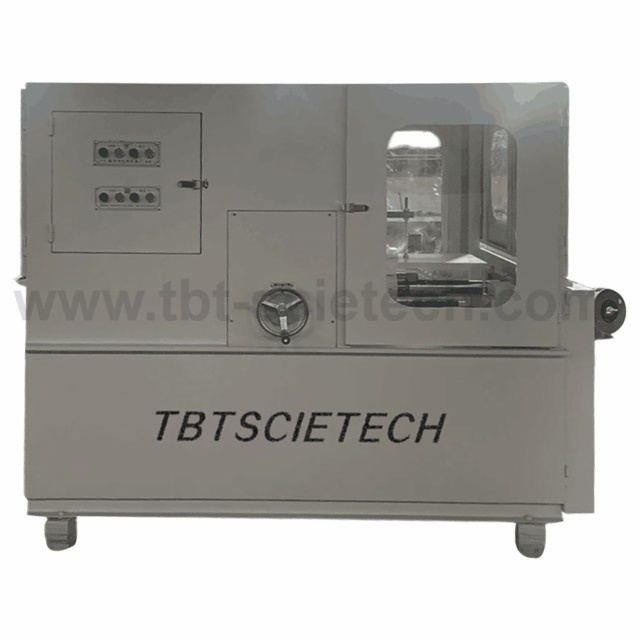

TBTMP-200E is a fully sealed double-faced grinding machine, which is designed to making standard samples for mechanical testing of various non-metallic solids such as rocks, ores, and concrete.

It drives the work table forward and backward horizontally, it’s widely used in colleges, geology and mineral resources department, transportation, construction and other departments.

Features:

Easy and friendly operating, automatic feeding with stable performance.

Power supply	220VAC 50HZ
Motor power for work table	750W
Power for grinding head	Y80-4, 1.1kw×2, speed 2800 rpm
Grinding mode	Parallel grinding on both surface ends simultaneously
Control mode	Manual or Automatic
Automatic grind feeding speed	0.04~0.17mm (adjustable)
Adopted specimen size	Cube: 40×40×40mm ~150×150×150mm
Adopted specimen size	Cylinder: D50 ~ D150mm (support max. 6pcs specimen grinding at the same time)
Standard fixture	2sets 1set can hold 6pcs D50mm specimen 1set can hold 3pcs D150mm specimen (Other fixtures to hold 4pcs D75mm OR 4pcs D100mm are optional)
Surface fineness	Ra3.2 (per roughness standard of machining)
Flatness at standard precision	Within range of 50mm test specimen: error: ±0.05mm, verticality: ≤0.1mm
Grinding wheel size	D200×D19×40mm
Cooling device	Water cooling (Liquid nitrogen cooling can be customized as optional)
Dimension	Around L1450mm × W1400mm × H1200mm
Weight	Around 600KG

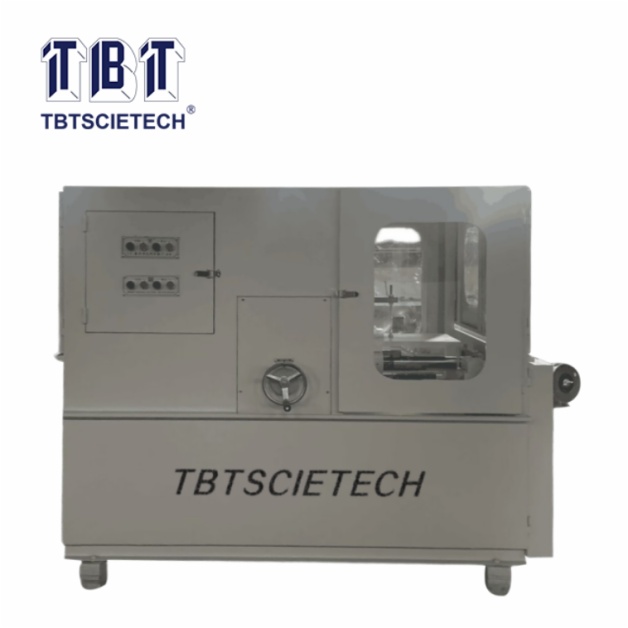

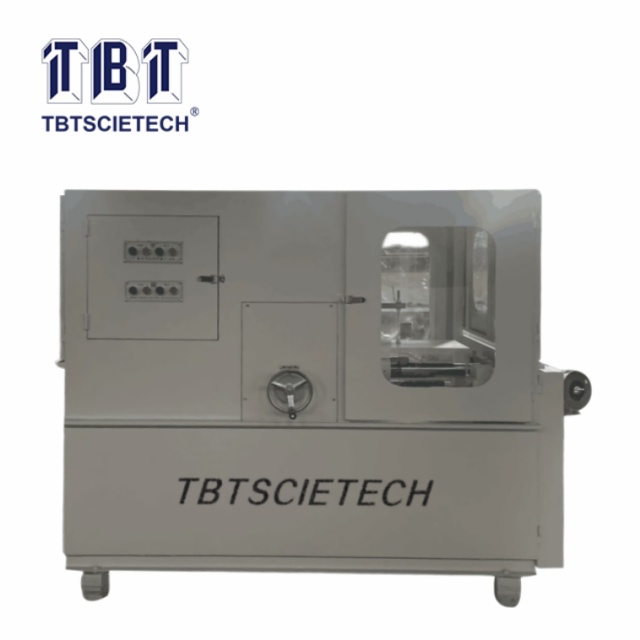

Double-faced Grinding Machine（Fully Sealed） TBTMP-200E
