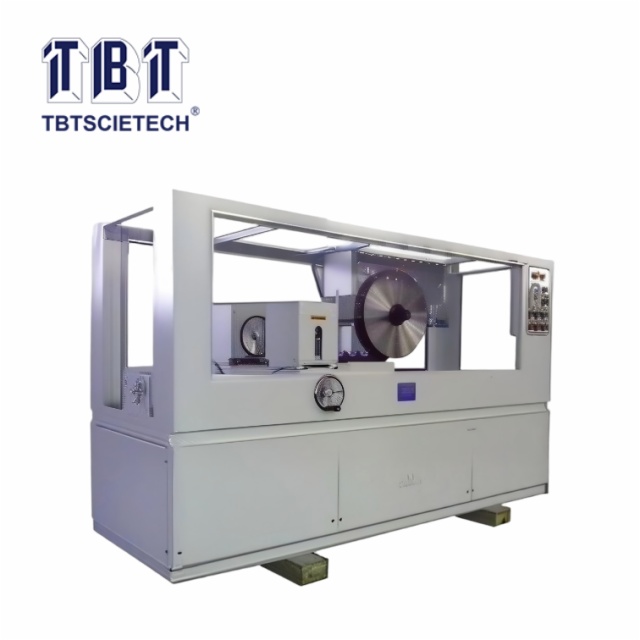

    Integrated Cutting - Grinding Machine TBTQM-150A

    Integrated Cutting - Grinding Machine
    Item Code:TBTQM-150A Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Introduction:

    This is a compact integrated slicing - grinding equipment, adopting frequency converter to control operation.

    It greatly improve the work efficiency.

    Cooling mode: Water cooling.



    Main features:

    1, High working efficiency and productivity for cut and grinding several cylinders simultaneously, easy to be operated.

    2, The saw blade is made of high manganese steel, polished after heat treatment, with Diamond cutter which has super wear-resistance and is suitable for various rocks.

    3, The cutting spindle at diameter 55mm which ensures the stability of working system and parallelism of specimens.

    4, Specimen feeding is controlled by frequency conversion motor, feeding speed is adjustable according to actual situation reducing idle running time and improving work efficiency.

    Specification:

    Cutting

    Max.height of cutting specimen

    170mm

    Adjustable space for Specimen

    factory set 50, 70, 100, 150mm, other size customized

    power for main unit

    4KW

    power for frequency conversion motor

    0.55KW

    cutting speed

    0-50m/min (adjustable)

    control mode

    press button

    Grinding

    Grinding head

    1.1KW, 2 sets, speed  3000 rpm

    Power of motor for Work table

    0.55KW, 1500 rpm

    Diameter of grinding wheel

    200mm

    Specimen range

    cylinder  50-150

    Standard accuracy

    Flatness

    tolerance 0.05mm within 50

    Smoothness

    Ra3.2, per standard of mechanical processing roughness

    Automatic grind feeding rate

    0.04～0.12mm adjustable

    Dimensions

    2380*900*1400mm  LWH
