    Core Sample Cutting Machine TBTHQ-150

    Core Sample Cutting Machine
    Item Code:TBTHQ-150 Features:TBTHQ-150 is a standard device designed for slicing core specimens. It features a secure clamping device to hold samples firmly in place during cutting, and an integrated spray system that delivers water to cool the blade and control dust.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

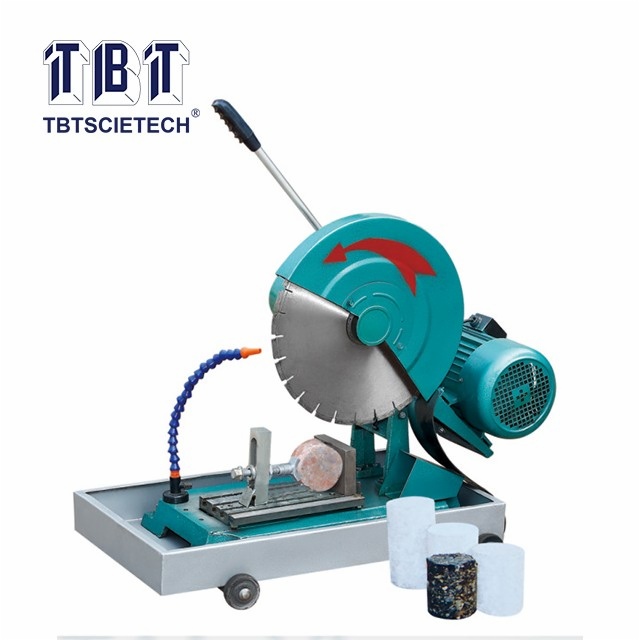

    TBTHQ-150 is a standard device designed for slicing core specimens. It features a secure clamping device to hold samples firmly in place during cutting, and an integrated spray system that delivers water to cool the blade and control dust. Built on a sturdy base with caster wheels, the machine can be easily moved and repositioned within the workshop or laboratory.

    Core sample capacity

    Φ50~150mm

    Diamond blade size

    Φ400mm

    Spindle speed

    2880rpm

    Weight

    40kg

    Power supply

    220/380V, 50Hz
