Digital Rock Point Load Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTHDH-1B is designed referring to ASTM D5731 Standard Test Method for Determination of the Point Load Strength Index of Rock. It can be used to determine the tensile and compressive strength of rock.

1.It adopts top and fragment loading, the pressure of rock failure is lower than that of conventional presses;

2.The sample does not need to be processed into a regular test piece, which is suitable for on-site measurement and is convenient for the determination of low-intensity rock.

Maximum working pressure of the system	60MPa
Piston diameter	ф63mm, stroke 160mm
Piston area	31.15cm²
Maximum pressure	100kN
Display mode	Digital display
Allowable maximum height of sample	150mm
Maximum width of sample	108mm
Function	The digital display has a peak hold function
Clyinder	The cylinder is a self-produced two-way cylinder with good end face stability
Pump	Equipped with two-way manual pump for independent loading
Safety device	Safety shield

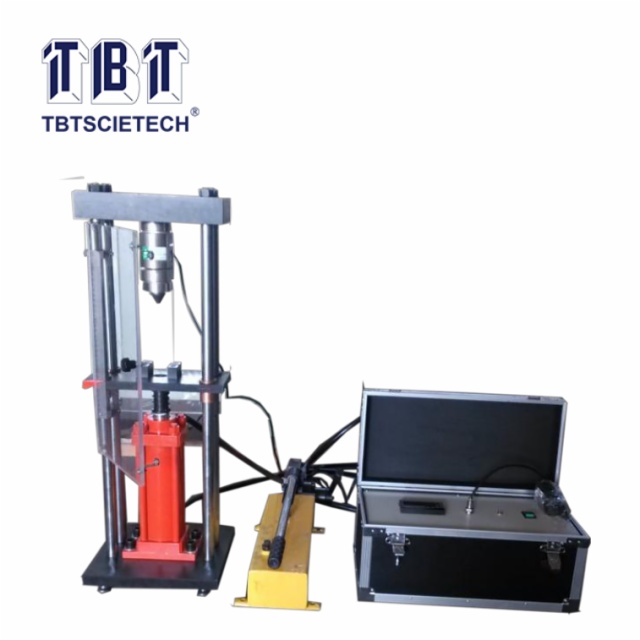

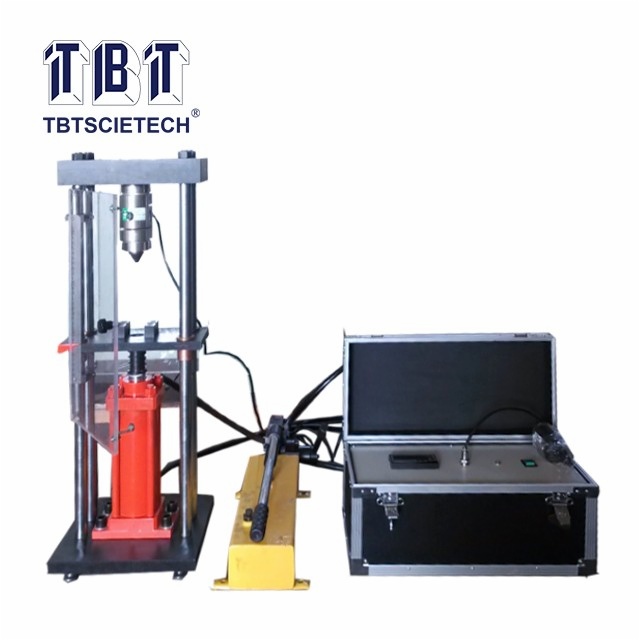

Digital Rock Point Load Tester TBTHDH-1B
