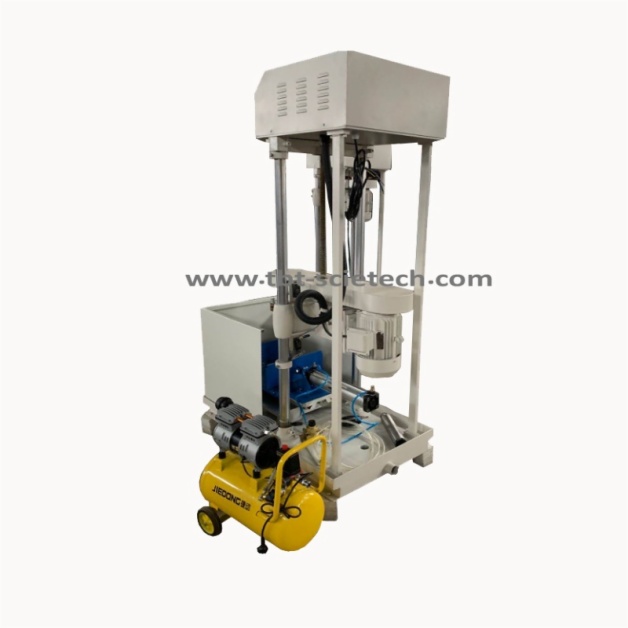

Automatic Lab Coring machine Manufacturer

Main Features:

1, Adopting 2-clumn guidance the cored sample more complete and accurate.

2, Drilling speed is regulated by frequency converter, more high-speed options available.

3, Easy for operation, just press button of coring, speed, up or down to control the device performance.

4, PLC control is available as well (Optional).

5, Options for cooling method available as Water or Liquid-nitrogen cooling, and dust-removal system can be selected for dry cutting (Optional).

6, Drill bits to be sold separately.

Specification:

Diamond bit	JR360 (Rock coring diamond bit)
Core diameter	Φ20--200mm
Max. drilling depth:	400mm
Motor power:	3KW
Inverter motor power:	0.55KW
Drilling speed:	0-50m/min (adjustable according to rock hardness)
specimen clamping mode	pneumatic clamping (optional), adjusted longitudinally and horizontally
Working mode:	automatically drilling, diamond bit automatically return back to starting position after work
Cooling method:	Water cooling for standard. (Liquid-nitrogen or Dry dust removal, optional)
Dimensions	1200×750×1600mm LWH
Weight	220kg
