Uniaxial Compressive Strength Machine Manufacturer

TBTRCTM-3000B adopts microcomputer control and constant-speed loading to automatically complete the testing process. It is used for compressive strength testing of building materials such as rock, concrete, cement products, hollow bricks, fly ash bricks, refractory materials, engineering materials, aggregates, and rubber bearings. The device software can display the full stress-strain curve of the specimen and rock envelope measurement functions (pressurization and depressurization, constant load, and arbitrarily settable number of cycles and cycle speed; recording the entire stress-strain curve, especially the post-test curve).

1. The device adopts high-precision sensors and computer control, can do automatic storage, retrieval, and printing of test reports;

2. The device adopts a cast-in-place gantry-type main unit structure with a main unit rigidity ≥5GN/m;

3. The software can design reports according to the unit's requirements;

4. It can test according to specific program based on the standard for uniaxial compressive strength of rock;

5. With the addition of tensile fixtures, it can complete the tensile strength test of rock.

Maximum test force	3000KN
Loading rate	0.1~35KN/s (digital setting)
Load accuracy	≤±0.5%
Load sensor	FHigh-precision load sensor can achieve a measurement accuracy of 1/1000000. Force accuracy meets grade 0.5 within the range of 1% to 100%, and grade 1.0 within the range of 0.5% to 1%.
Displacement control	0.002-mm/s (digital setting)
Displacement sensor range	0-500mm
Displacement sensor accuracy	0.004mm
Compression space	500mm
Pressure plate size	φ300mm
Piston stroke	200mm
Clear distance between vertical plates	600mm
Overload protection	2% above full range
Configuration	Includes branded computer and monitor
Frame	Full load deformation <0.2mm
Frame stiffness coefficient	2.8
Operating temperature	5℃-35℃
Main unit size	850x600x1900mm
Weight	2300kg
Motor power	1.5KW
Power supply	220V/380V, 50Hz

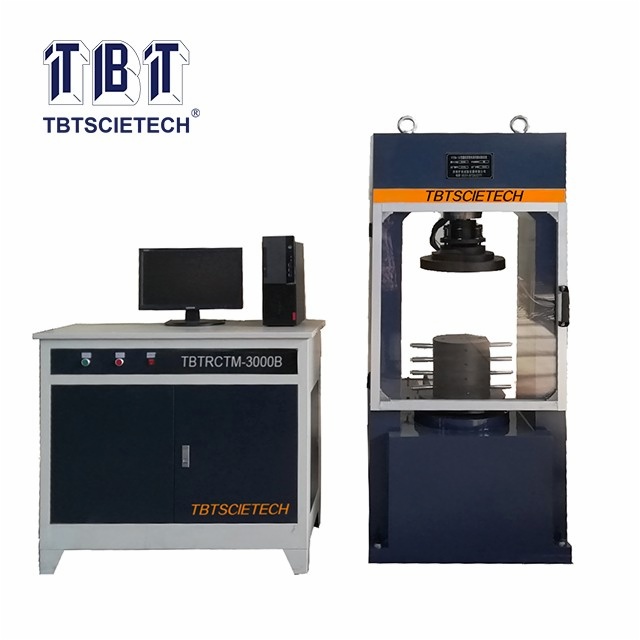

Uniaxial Compressive Strength Machine TBTRCTM-3000B
