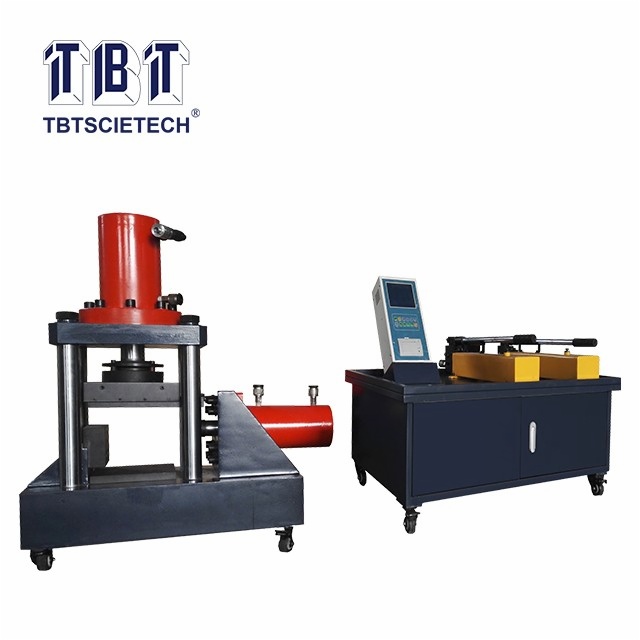

    Rock Direct Shear Apparatus TBTYZ-30B

    Rock Direct Shear Apparatus
    Item Code:TBTYZ-30B Features:TBTYZ-30B adopts horizontal push method, mainly applicable to the direct shear test of rock blocks, structural surfaces (such as joint surfaces, layers, slices, cracked surfaces, etc.) and the direct shear test of concrete (or mortar) and rock contact surface (cement surface), as well as concrete and other Shear strength test of material joint surface.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBTYZ-30B adopts horizontal push method, mainly applicable to the direct shear test of rock blocks, structural surfaces (such as joint surfaces, layers, slices, cracked surfaces, etc.) and the direct shear test of concrete (or mortar) and rock contact surface (cement surface), as well as concrete and other Shear strength test of material joint surface.

    1.The device is simple in structure, portable, intuitive, easy to maintain;
    2.The test data is digitally displayed, which is accurate and reliable.

    Maximum normal pressure

    500KN

    Accuracy of indication

    ≤±1% (better than level 1)

    The maximum stroke of the normal piston

    100mm

    Maximum tangential shear force

    300KN

    Indication accuracy

    ≤±1% (better than level I)

    Working stroke of tangential piston

    100mm

    Maximum tangential space

    160mm

    Maximum normal space

    155mm (adjustable by grading)

    Loading & display method

    Manual loading, LCD digital display

    Direct shear box

    standard Φ50*50mm.

    Weight

    450kg

    Power supply

    220/380V, 50Hz



    Other Products

    Product Name:
    Rock Triaxial Apparatus
    Model:
    TBTRTA-1000B
    Description:
    TBTRTA-1000B adopts servo control and displays axial loading force (kN) and confining pressure (MPa) values via triaxial rock software. It also features confining pressure stabilization and adjustment capabilities.
    Product Name:
    Double-faced Grinding Machine
    Model:
    TBTMP200
    Description:
    Product Name:
    Rock Compression Dilatometer
    Model:
    TBTRPZ-2
    Description:
    Product Name:
    Double-faced Grinding Machine（Fully Sealed）
    Model:
    TBTMP-200E
    Description:
    TBTMP-200E is a fully sealed double-faced grinding machine, which is designed to making standard samples for mechanical testing of various non-metallic solids such as rocks, ores, and concrete.
    Product Name:
    Integrated Cutting - Grinding Machine
    Model:
    TBTQM-150A
    Description:
    Product Name:

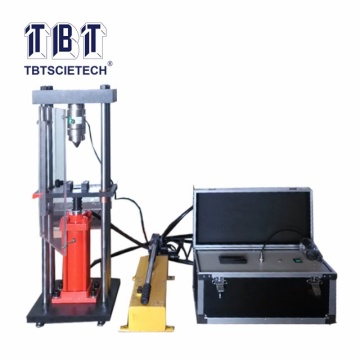

    Digital Rock Point Load Tester
