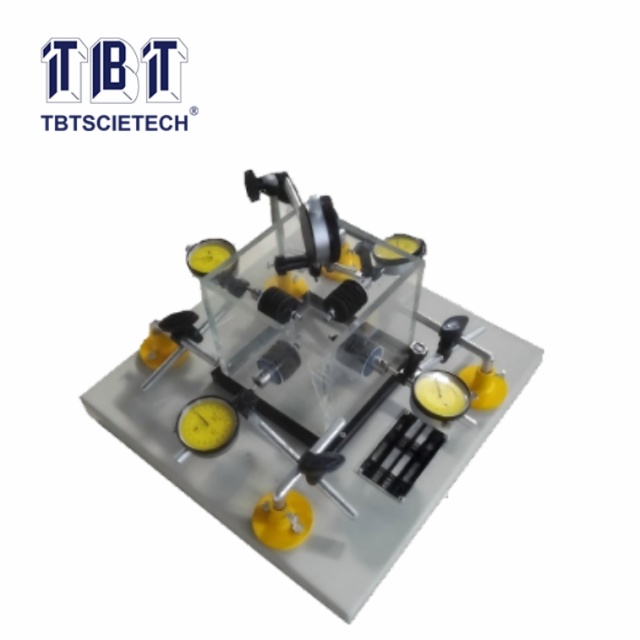

    Rock Free Dilatometer TBTRPZ-1

    Rock Free Dilatometer
    Item Code:TBTRPZ-1 Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    Introduction:

    The Rock free dilatometer is used to determine the expansion rate of stone in liquid.

    It measures the ratio of rock specimen radial & axial deformation after being immersed in water against the original diameter & height of the specimen, it is expressed as a percentage.

    The instrument comes complete with permeable plate and dial gauge.

    Specification:

    Display mode:

    Dial gauge with range 5mm，accuracy 0.001mm

    Water tank:

    160×160×130mm

    Specimen range:

    cylinder Φ50～60mm, height approximately equal to diameter.         cube side 50～60mm with end faces parallel & polished.

    Dimensions:

    500×500×150mm
